| ブランド名: | BOE |
| モデル番号: | AV123Z7M-N18 |
| MOQ: | 10pcs |
| 価格: | $56 |

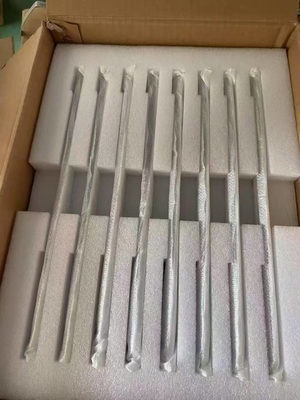

| パッケージの詳細: | Industrial packing |
| 支払条件: | T/T,W, Western Union, MoneyGram |

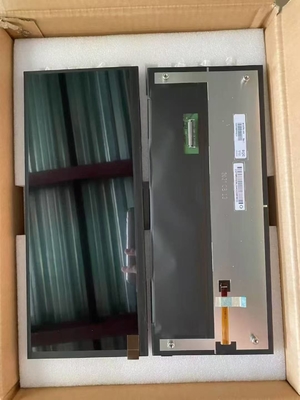

12.3Inch BOE Automotive lcd Display model AV123Z7M-N18 1920*720Pixels 45pin automotive display
AV123Z7M-N18 (Alias: COG-VLSZT051-01) is a 12.3" diagonal a-Si TFT-LCD display panel product from BOE Technology Group Co., Ltd. (hereafter called BOE), with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -30 ~ 85°C , a storage temperature range of -40 ~ 90°C . It's general features are summarized by einklcd in the following: sRGB, Wide Temperature, Hight Brightness, WLED Backlight, Bar Display, U/D,L/R Reverse , Caution: multi versions. Based on its features, einklcd recommend that this model be applied to Automotive Display etc.Built-in RM5366A*3 + RM57861*1 driver IC. According to the information stored in einklcd this model mass production on Q4, 2019, Now this model is in production. We inputted this model's specification on Mar 23 2021 for the first time, and the latest update on Jun 18 2024. If you want to embed the LCM in your future product, einklcd strongly recommend that you should contact with BOE or it's agent to learn lateast production and specification detail of AV123Z7M-N18. The production status marked on einlcd.com is for reference only and should not be used as the basis for the user's decision making.
Brand BOE
Model P/N: AV123Z7M-N18
Compatible Model 1 Compatible
Diagonal Size:12.3"
Panel Type: a-Si TFT-LCD, LCM
Resolution1920(RGB)×720 167PPI Pixel
Format RGB Vertical Stripe
Active Area: 292.032(W)×109.512(H) mm
Bezel Opening-
Outline(mm) 307 × 126 × 10.52 (H×V×D)
Treatment Hard coating
Luminance 850 cd/m² (Typ.)
Contrast Ratio: 1100 : 1 (Typ.) (TM)
Viewing Angle: 88/88/88/88 (Typ.)(CR≥10) Left / Right / Up / Down
Response 25 (Typ.)(Tr+Td) ms
Good View at Symmetry
Work Mode :ADS, Normally Black, Transmissive
Color Depth:16.7M 75% NTSC
Backlight 9S4P WLED , No Driver
Mass-Used for: Automotive Display
Refresh Rate 60Hz
Touch screen: Without
Signal TypeLVDS (2 ch, 8-bit) , 45 pins Connector
Max. Ratings
Storage Temp.: -40 ~ 90 °C
Operating Temp.: -30 ~ 85 °C
|
|
