| ブランド名: | TIANMA |
| モデル番号: | P1850UHF1MA00 |
| MOQ: | 10個 |
| 価格: | negotiable |
| 支払条件: | T/T、W、ウェスタンユニオン、マネーグラム |
| 供給能力: | 週に3000pcs |

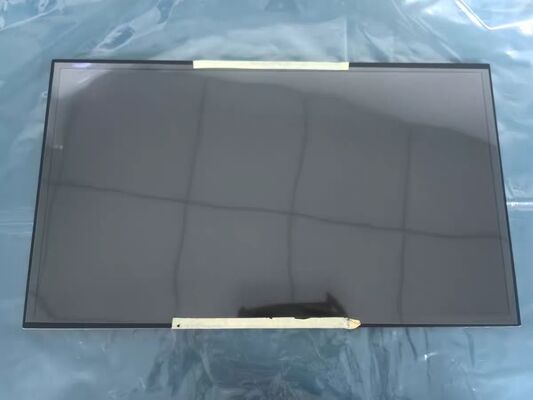

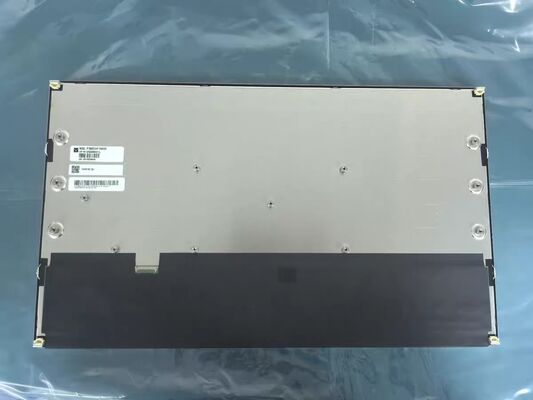

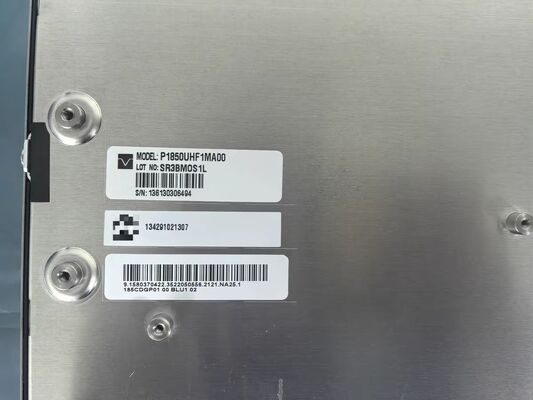

The P1850UHF1MA00 is a high-performance 18.5-inch industrial LCD display panel from Tianma Microelectronics Co., Ltd., featuring ultra-high brightness of 1400 cd/m² and UHD resolution (3840×2160 pixels). This panel is specifically designed for demanding industrial and outdoor applications.
| Brand | TIANMA |
| Model P/N | P1850UHF1MA00 |
| Diagonal Size | 18.5" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 3840(RGB)×2160 (UHD), 238 PPI |
| Active Area | 408.96(W)×230.04(H) mm |
| Outline Dimensions | 430.96×252.04 mm (H×V×D) |
| Luminance | 1400 cd/m² (Typical) |
| Contrast Ratio | 1200:1 (Typical) |
| Viewing Angle | 88/88/88/88 (Typical, CR≥10) |
| Color Depth | 1.07B colors, 72% NTSC |
| Backlight | WLED, 20K hours lifespan, No Driver |
| Refresh Rate | 60Hz |
| Signal Type | eDP, eDP1.2 |
| Touchscreen | Without |
| Operating Temperature | -20°C to 70°C |
| Storage Temperature | -30°C to 80°C |
