| ブランド名: | Innolux |
| モデル番号: | EJ101IA-01G |
| MOQ: | 10pcs |
| 価格: | negotiable |
| パッケージの詳細: | Industrial packing |
| 支払条件: | T/T,W, Western Union, MoneyGram |

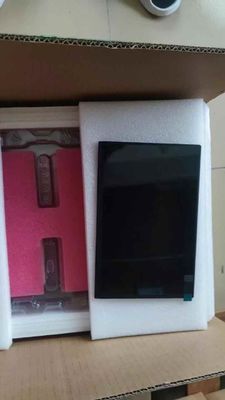

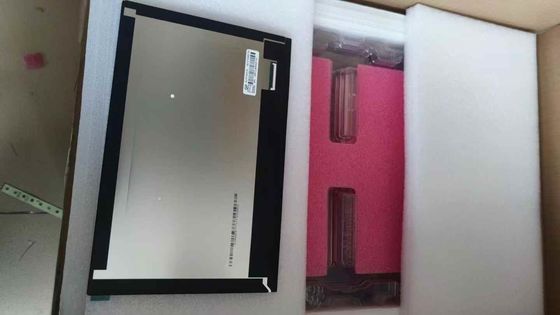

Innolux 10.1inch table lcd panel EJ101IA-01G Laptop LCD Model with 1280*800 Pixels 149PPI 40pin
Innolux Corporation (hereafter called Innolux) EJ101IA-01G is a 10.1 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -10 ~ 60°C , a storage temperature range of -20 ~ 70°C . It's general features are summarized by einklcd in the following: Hight Brightness, WLED Backlight, Reverse I/F . Based on its features, einklcd recommend that this model be applied to Pad & Tablet etc.Built-in ILI6192 + ILI5801 driver IC. According to the information stored in einklcd this model mass production on Q3, 2012, Now this model is in production. We inputted this model's specification on Sep 28 2012 for the first time, and the latest update on Jan 24 2024. If you want to embed EJ101IA-01G LCM in your future product, einklcd strongly recommend that you should contact with Innolux or it's distributor to learn lateast production and specification detail. The EJ101IA-01G production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.
Brand:Innolux
Model P/N: EJ101IA-01G
Diagonal Size: 10.1"
Panel Type: a-Si TFT-LCD, LCM
Resolution 1280(RGB)×800, WXGA 149PPI
Format : RGB Vertical Stripe
Active Area 216.96(W)×135.6(H) mm
Bezel Opening-
Outline(mm) 229.46 × 149.1 × 4.66 (H×V×D)
Treatment:Hard coating
Luminance: 550 cd/m² (Typ.)
Contrast Ratio:1000 : 1 (Typ.) (TM)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10) Left / Right / Up / Down
Response: 10/15 (Typ.)(Tr/Td) ms
Good View at Symmetry
Work Mode: IPS, Normally Black, Transmissive
Color Depth16.7M 50% NTSC Backlight 3S10P WLED , 15K hours , No Driver
Mass 183g (Typ.)
Used for: Pad & Tablet
Refresh Rate: 60Hz
Touchs creen: Without
Signal TypeLVDS (1 ch, 8-bit) , 40 pins Connector
Voltage Supply 2.5/8.2/12.5/-13V (Typ.)(VDD/AVDD/VGH/VGL)
Max. Ratings
Storage Temp.: -20 ~ 70 °C
Operating Temp.: -10 ~ 60 °C
|
|
