| ブランド名: | BOE |
| モデル番号: | QV185FHB-N82 |
| MOQ: | 10個 |
| 価格: | negotiable |

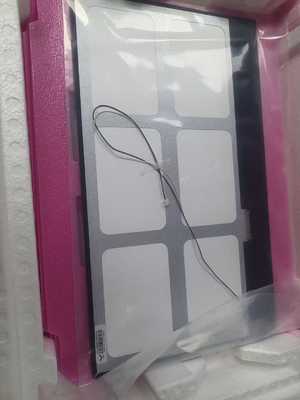

| パッケージの詳細: | 産業用パッキング |
| 支払条件: | T/T、W、Western Union、MoneyGram |

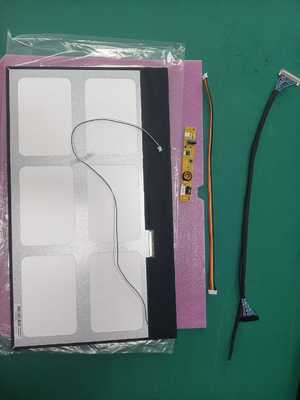

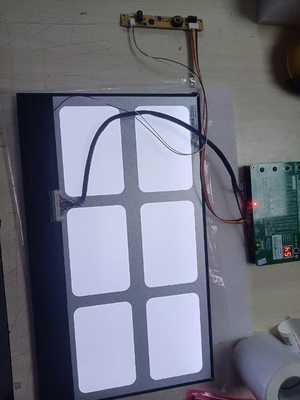

BOE 18.5inch Digital signage lcd panle model QV185FHB-N82 1920*1080 Pixels 119PPI 30PIN
BOE Technology Group Co., Ltd. (hereafter called BOE) QV185FHB-N82 is a 18.5 inch diagonal a-Si TFT-LCD display panel product, without backlight, without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C . It's general features are summarized by einklcd in the following: Landscape / Portrait, Matte . Based on its features, Einklcd recommend that this model be applied to Digital Signage etc.Built-in 3 source chips driver IC. According to the information stored in Einkld this model mass production on Q2, 2022, Now this model is in production. We inputted this model's specification on Jul 28 2022 for the first time, and the latest update on Apr 30 2024. If you want to embed QV185FHB-N82 CELL in your future product, Einklcd strongly recommend that you should contact with BOE or it's distributor to learn lateast production and specification detail. The QV185FHB-N82 production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.
Brand: BOE
Model P/N:QV185FHB-N82
Diagonal Size: 18.5"
Panel Type: a-Si TFT-LCD, CELL , FOB
Resolution:1920(RGB)×1080, FHD 119PPI
Pixel Format: RGB Vertical Stripe
Active Area408.96(W)×230.04(H) mm
Bezel Opening-
Outline Dim.422.2(H)×244.1(V)×1.2(D) mm
Treatment :Antiglare (Haze 25%), Hard coating (3H)
Luminance: 0 cd/m²
Contrast Ratio:1200:1 (Typ.) (TM)
View Direction Symmetry
Response Time: 14 (Typ.)(G to G)
Viewing Angle89/89/89/89 (Typ.)(CR≥10) Left / Right / Up / Down
Operating Mode:HADS, Normally Black, Transmissive
Plate Thickness: 0.40+0.50 mm
It's Depth of CF Depth + Array Depth
CELL Depth = CF Depth + Array DepthTransmittance3.8% (Typ.)(with Polarizer)
Support Color: 16.7M 72% NTSCLight SourceNo B/L
Weight: 330g (Typ.)
Designed For: Digital Signage
Frame Rate60Hz
120Hz (60HZ Input) : Embedded MEMC Circuit
120Hz+120Hz : 120Hz Panel+120Hz Backlight
240Hz (60HZ Input) : Embedded MEMC Circuit
Touch Panel: Without
D-IC DetailCOF Built-in 3 source chips

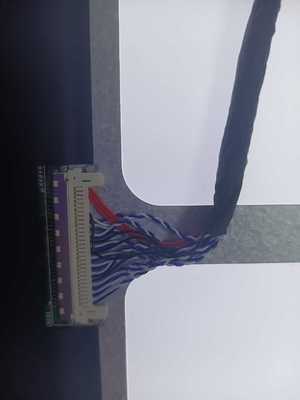

Interface Type: LVDS (2 ch, 8-bit) , 30 pins Connector
Power Supply: 5.0V (Typ.)
Environment Operating Temperature: 0 ~ 50 °C ;
Storage Temperature: -20 ~ 60 °C
|
|
