| ブランド名: | AUO |
| モデル番号: | B173HANAA.J |
| MOQ: | 10個 |
| 価格: | negotiable |
| パッケージの詳細: | 産業用パッキング |
| 支払条件: | T/T、W、Western Union、MoneyGram |

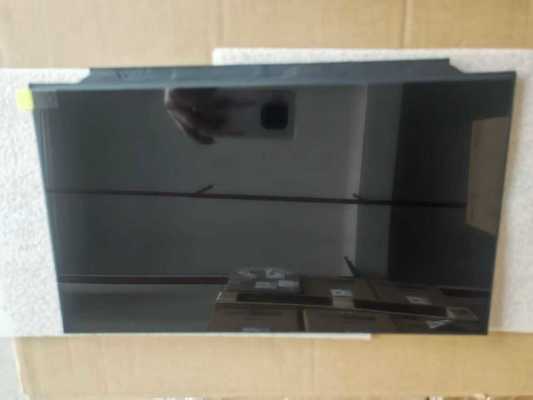

AUO 17.3inch laptop lcd model B173HANAA.J 1920*1080Pixels PC LCD Module 30PIN 127PPI Desktop monitor
B173HANAA.J is a 17.3" diagonal a-Si TFT-LCD display panel product from AU Optronics Corp. (hereafter called AUO), with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C , and the maximal vibration level of 1.5G (14.7 m/s²). It's general features are summarized by einklcd in the following: sRGB, WLED Backlight, With LED Driver, Reverse I/F, Matte , eDP1.2. Based on its features, einklcd recommend that this model be applied to Laptop etc. According to the information stored in einklcd this model mass production on Q3, 2025, Now this model is in production. We inputted this model's specification on Jul 25 2025 for the first time, and the latest update on Oct 30 2025. If you want to embed the LCM in your future product, einklcd strongly recommend that you should contact with AUO or it's agent to learn lateast production and specification detail of B173HANAA.J. The production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.
Brand: AUO
Model P/N:B173HANAA.J
Diagonal Size: 17.3"
Panel Type:a-Si TFT-LCD, LCM
Resolution: 1920(RGB)×1080, FHD 127PPI
Pixel Format: RGB Vertical Stripe
Active Area 381.888(W)×214.812(H) mm
Bezel Opening-
Outline Dim. 389.89(H)×238.31(V) ×3.5(D) mm
Treatment: Antiglare, Hard coating (2H)
Luminance: 300 cd/m² (Typ.)
Contrast Ratio: 1200:1 (Typ.) (TM)
View Direction Symmetry
Response Time: 25 (Typ.)(Tr+Td)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) Left / Right / Up / Down
Operating Mode AHVA, Normally Black, Transmissive
Support Color: 16.7M 98% sRGBLight SourceWLED , 15K hours , With LED Driver
Form :Style Slim (PCBA Flat, T≤3.2mm)
Designed For: Laptop
Frame Rate: 60Hz
Touch Panel: Without
Interface Type eDP (2 Lanes) , eDP1.2 , 30 pins Connector
Power Supply: 3.3V (Typ.)
Environment Operating Temperature: 0 ~ 50 °C ;
Storage Temperature: -20 ~ 60 °C
|
|
