商品の詳細:
|
| 質: | ブランドの新しいオリジナル | Package: | Original industrial packing |
|---|---|---|---|
| 決断: | 800*600pixels | style: | 20PIN IPS |
| brightness: | 400CD/M2 | color: | 262k |
| contrast ratio: | 800 :1 | working life: | 70K Hours |

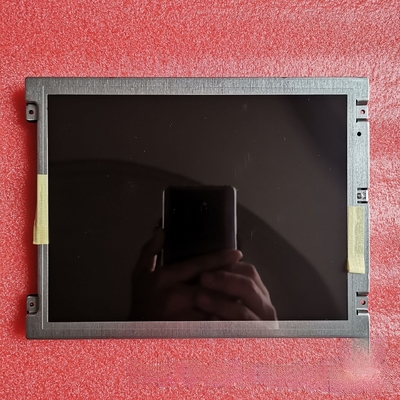

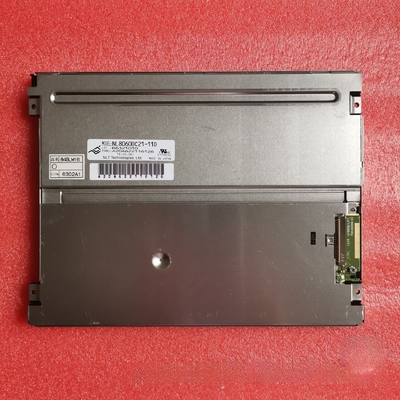

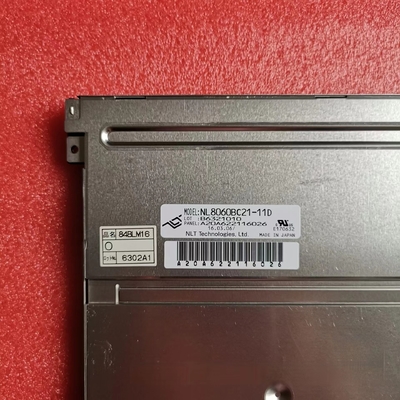

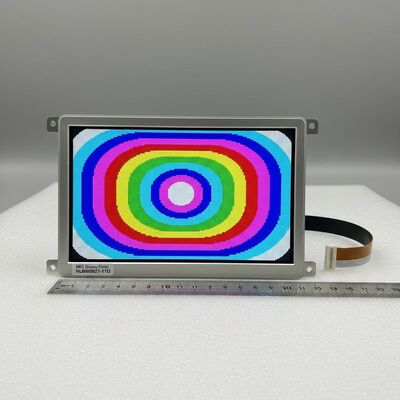

NEC 8.4Inch Industrial LCD Display Panel NL8060BC21-11D 800(RGB)×600 SVGA 119PPI 20P 400 cd/m²
NL8060BC21-11D is a 8.4" diagonal a-Si TFT-LCD display panel product from NEC LCD Technologies, Ltd. (hereafter called NEC), with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -30 ~ 80°C , a storage temperature range of -30 ~ 80°C , and the maximal vibration level of 2.0G (19.6 m/s²). It's general features are summarized by Einklcd in the following: Wide Temperature, Lamp Repaceable, WLED Backlight, Life ≥ 70K hours, 180° Reverse, 6/8 bit, Matte , ColorXcell. Based on its features, Einklcd recommend that this model be applied to Industrial etc. According to the information stored in Einklcd this model mass production on Q3, 2010, Now this model is in production. We inputted this model's specification on Sep 12 2012 for the first time, and the latest update on Sep 20 2019. If you want to embed the LCM in your future product, einklcd strongly recommend that you should contact with NEC or it's agent to learn lateast production and specification detail of NL8060BC21-11D. The production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.
