商品の詳細:
お支払配送条件:
|
質: | 真新しい原物 | パッケージ: | 元の産業パッキング |
---|---|---|---|
材料: | oledガラス | 色: | 16.7M色 |
モデル: | WLED | 様式: | ワイド スクリーン高リゾリューション3840*2160 |
明るさ: | 300cd | コネクター: | 30PIN |
対照の比率: | 1600:1 | ワーキング・ライフ: | 30k時間 |
ハイライト: | 300cd/m2 Highlight Laptop Lcd Monitor,3840x2160 Highlight Laptop Lcd Monitor,LP150QD1-SPA1 |

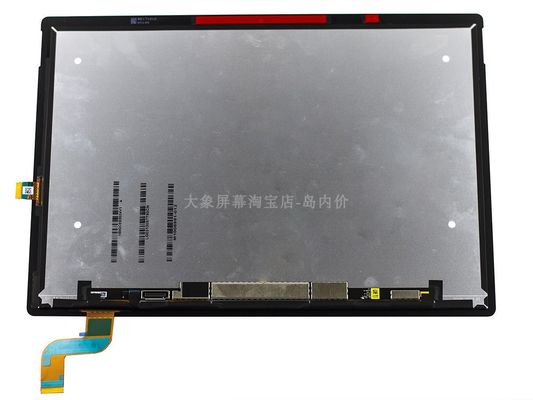

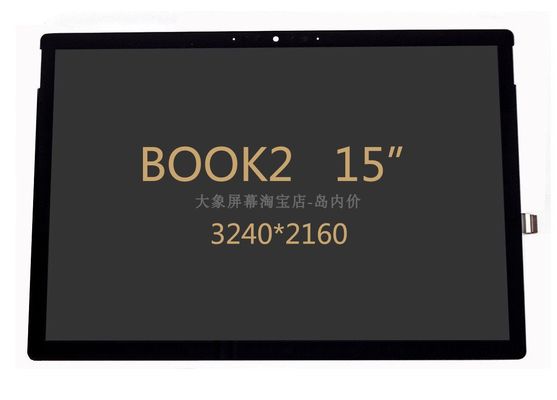

3840*2160 Pixels LG 15Inch highlight laptop lcd monitor LP150QD1-SPA1 1600:1 for surface book2
LP150QD1-SPA1 (Alias: LP150QD1 (SP)(A1)) (Product Code: LGD0554) is a 15.0" diagonal Oxide TFT-LCD display panel product from LG Display Co., Ltd. (hereafter called LG Display), with an integral WLED backlight system. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C . It's general features are summarized by Einklcd in the following: WLED Backlight , for Microsoft Surface Book 2 15" 1793. Based on its features, einklcd recommend that this model be applied to Laptop, Pad & Tablet etc. According to the information stored in einklcd this model mass production on Q4, 2016, Now this model is in production. We inputted this model's specification on May 16 2019 for the first time. If you want to embed the LCM in your future product, einklcd strongly recommend that you should contact with LG Display or it's agent to learn lateast production and specification detail of LP150QD1-SPA1. The production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.
Brand |
---|
Diagonal Size |
Pixel Format |
Luminance |
View Direction |
Viewing Angle |
Support Color |
Form Style |
Frame Rate |
LG Display |
15.0 inch |
3240(RGB)×2160 |
- |
Symmetry |
89/89/89/89 (Typ.)(CR≥10) |
16.7M |
- |
60Hz |
Model |
Type |
Configuration |
Contrast Ratio |
Response Time |
Operating Mode |
Light Source |
Designed For |
Touch Panel |
LP150QD1-SPA1 (LGD0554) |
Oxide TFT-LCD , LCM |
RGB Vertical Stripe |
1600:1 (Typ.) (TM) |
- |
IPS, Normally Black, Transmissive |
WLED |
- |
Interface Type | eDP |
---|---|
Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
